What Makes Car Wash Equipment Different from Paint Protection

Car wash equipment supplies the physical delivery needed to remove contamination: water flow, pressure, foam, agitation, suction, and drying. Paint protection performs a different job after cleaning and preparation. Wax, sealant, film, or coating is deliberately left on the finish to alter water behavior, contamination release, gloss, chemical exposure, or physical wear within defined limits.

The categories meet at surface preparation and maintenance. Protection cannot bond through road film, oils, polishing residue, or detergent; wash equipment can preserve or degrade an installed layer depending on chemistry, spray force, contact media, and frequency. A protected panel still needs safe washing, and beading alone does not prove cleanliness or remaining protection.

By: Review Streets Research Lab
Updated: September 1, 2026
Explainer · 8-12 min read

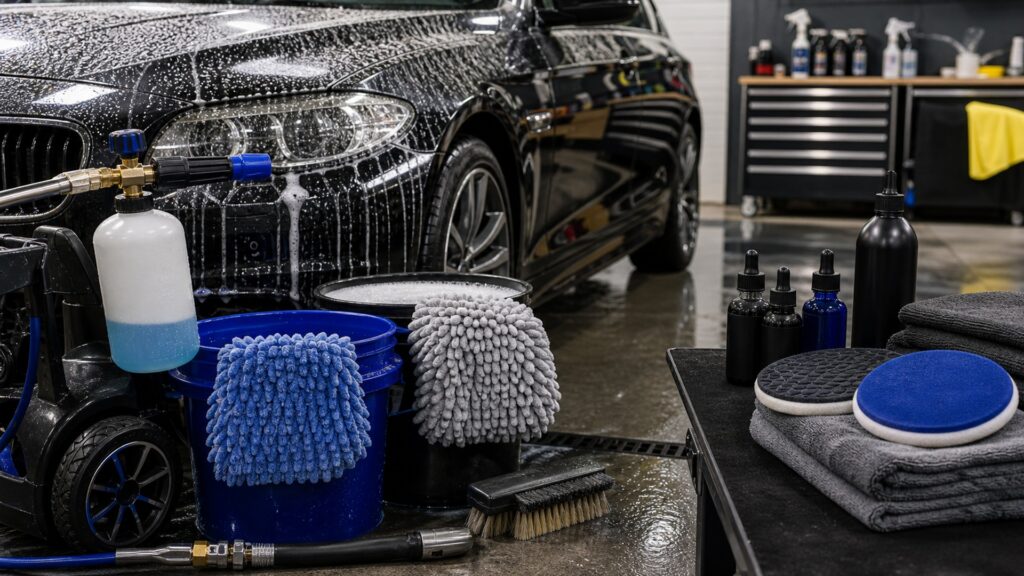

car wash equipment different from paint protection explainer hero image for Review Streets
What You'll Learn

Separate Removal Energy from the Layer Left Behind

Equipment exports soil and residues; protection intentionally remains. Good results depend on proving the surface is ready, applying the correct layer, curing it, and washing it within its limits.

  • Remove loose and bonded contamination
  • Verify preparation rather than visible gloss
  • Apply protection to compatible surfaces
  • Respect flash and cure conditions
  • Maintain with suitable chemistry and media
  • Inspect performance beyond water beading

Tip: Never use protection to conceal active contamination, oxidation, deep defects, failing clear coat, or preparation residue; the layer will preserve the underlying condition rather than correct it.

Definitions

Key Concepts That Define Car Wash Equipment and Paint Protection

These terms distinguish a cleaning process from a retained protective layer and its maintenance evidence. The comparison tracks soil removal, surface preparation, sacrificial film, bonded coating, paint-protection film, film durability, coating degradation, maintenance wash, and protection failure.

Surface Preparation

Cleaning and, when required, decontamination, correction, and residue removal that create the condition specified for protection application.

  • Inspection establishes readiness
  • Oils can impair bonding
  • Correction is not always required

Sacrificial Film

A relatively thin applied material intended to take environmental exposure and be replenished before the vehicle finish does.

  • Waxes and sealants vary
  • Removal can be chemical or mechanical
  • Durability depends on use

Bonded Coating

A liquid-applied protective material designed to cure or cross-link on a prepared substrate more persistently than a conventional dressing.

  • Cure conditions matter
  • Thickness remains limited
  • Removal may require abrasion

Paint-Protection Film

A formed polymer sheet adhered to painted panels to resist selected chips, abrasion, staining, and environmental exposure.

  • Edges need care
  • Adhesive condition matters
  • It does not cover every panel

Maintenance Wash

A cleaning cycle intended to remove contamination while minimizing avoidable wear or chemical stress on an installed protective system.

  • Media cleanliness remains critical
  • Chemistry must be compatible
  • Inspection guides decontamination

Protection Failure

Loss of the layer's intended adhesion, clarity, appearance, release behavior, or physical integrity beyond normal soil masking.

  • Contamination can imitate failure
  • Beading is incomplete evidence
  • Localized damage differs from wear

Tip: Describe the exact protection—wax, sealant, coating, or film—because application, cure, thickness, failure, and wash tolerance differ.

Opposite Material Flows

Washing Removes Material; Protection Adds and Retains It

Wash equipment delivers energy and liquid so unwanted soil and spent chemistry leave the panel. Protection application meters a chosen product or film so an even, compatible layer remains after leveling, curing, or adhesion.

  • Identify what must leave
  • Identify what should remain
  • Use separate clean applicators
  • Verify removal and retention independently

Confusing these flows produces residue during washing or poor bonding during protection.

Preparation Interface

Protection Depends on a Surface the Wash Process Actually Reveals

Rinsing can remove loose dirt, but bonded fallout, tar, mineral deposits, oxidation, defects, or polishing oils may require additional steps. Preparation ends when the product maker's surface conditions are met, not when wet paint looks glossy.

  • Inspect under controlled light
  • Use chemical and mechanical decontamination selectively
  • Correct only to the chosen goal
  • Remove preparation residues

The protection layer cannot improve the cleanliness beneath it.

Performance Mechanism

Protection Changes Interfacial Behavior within Narrow Limits

A wax or coating can alter surface energy, slickness, staining resistance, or chemical tolerance; film adds a thicker physical barrier. None makes paint immune to impacts, scratches, water spots, harsh chemicals, or poor wash media.

  • Define the claimed damage mechanism
  • Distinguish film from liquid coatings
  • Read chemical and temperature limits
  • Treat durability as exposure-dependent

A broad word such as protection is not a specification.

Maintenance Interaction

Every Wash Applies Chemical and Mechanical Stress to the Layer

Strong cleaners, close spray, abrasive particles, stiff brushes, hot panels, and repeated contact can shorten service life or damage film edges. Compatible chemistry, pre-rinsing, lubrication, clean media, and controlled drying reduce wear.

  • Remove abrasive soil before contact
  • Avoid concentrated spray at edges
  • Use the least aggressive effective chemistry
  • Inspect after decontamination

Maintenance determines whether the installed layer remains an aid or becomes another surface defect.

Evaluation Evidence

Cleanliness, Beading, Gloss, and Protection Are Different Observations

Freshly cleaned bare paint can bead; contaminated coatings can lose beading; gloss can come from polishing or filling. Evaluate the panel after cleaning, compare known sections, inspect adhesion and defects, and use product-specific criteria.

  • Clean before declaring failure
  • Compare horizontal and vertical exposure
  • Inspect film edges and coating behavior
  • Document application and maintenance history

Water behavior is a clue, not a complete diagnosis of protection.

Quick Reality Check

Cleaning Is Required; Protection Is Optional and Specific

Every protection system needs a suitable clean substrate and continuing maintenance, but washing can stand alone when no retained layer is desired.

Protection Adds Value When

The finish condition is understood, preparation can meet the selected product's requirements, cure and storage conditions are available, and the claimed benefit matches the vehicle's actual exposures.

The owner will use compatible maintenance, inspect contamination and damage, and replenish or repair the layer according to evidence rather than relying on a one-time application.

Protection Cannot Replace

It cannot substitute for washing, decontamination, paint repair, clear-coat thickness, chip repair, corrosion treatment, safe contact technique, or removal of bird droppings, mineral deposits, and other active contamination.

No wax, sealant, coating, or film prevents every scratch, chemical mark, stone impact, water spot, UV effect, or installation defect; protection claims must name the mechanism and conditions.

Common Myths

Misconceptions About Car Wash Equipment and Paint Protection

Protection myths often convert beading, hardness numbers, or one dramatic demonstration into a claim of permanent immunity.

A ceramic coating eliminates the need to wash

Coatings can make some contamination easier to release, but road film, salts, minerals, insects, and organic deposits still accumulate. Delayed or aggressive cleaning can stain, abrade, or chemically stress the coating and underlying finish.

Pressure washing always strips paint protection

Appropriate pressure, fan, distance, chemistry, and technique can support maintenance, while close concentrated spray, harsh products, damaged film edges, or weak substrates can cause harm. The layer type and condition determine the boundary.

Water beading proves protection is intact

Beading reflects current surface energy and can appear on clean bare paint or change with contamination and toppers. Inspect after safe cleaning and use product-specific behavior, sheeting, slickness, defects, and history as combined evidence.

Paint protection corrects scratches and oxidation

Protection may temporarily darken or fill minor defects, but it does not restore missing clear coat or remove oxidation and scratches. Correction changes the surface abrasively; protection is applied after the chosen finish condition exists.

Tip: Separate cleaning evidence, layer type, cure, exposure, maintenance, and the exact damage mechanism before judging performance.

FAQ

Frequently Asked Questions About Car Wash Equipment and Paint Protection

These answers clarify order of work, compatibility, pressure washing, film versus coatings, maintenance chemistry, and how to evaluate an apparent loss of protection.

Does protection go before or after washing?

Apply it after washing and any required decontamination, correction, and residue removal. The exact preparation, temperature, humidity, leveling, cure, and water-avoidance requirements come from the selected product or film installation system.

Can the same equipment apply protection?

Some polishers, sprayers, applicators, or film tools help distribute products, but application hardware does not change the functional distinction. Use compatible dedicated components, prevent cross-contamination, meter product, and verify complete leveling or adhesion.

Is paint-protection film the same as ceramic coating?

No. Film is a comparatively thick adhered sheet offering selected physical impact and abrasion resistance; a ceramic coating is a thin cured liquid layer. They have different installation, edge, repair, removal, and maintenance behavior.

Which wash chemicals are safe on protection?

Follow the protection and cleaner manufacturers' compatibility guidance, including dilution, dwell, temperature, and rinsing. Choose the least aggressive effective product, work on cool panels, prevent drying, and test when the layer's identity is uncertain.

How should suspected protection failure be checked?

Wash and decontaminate conservatively, inspect under consistent conditions, compare sheltered and exposed areas, review application and maintenance history, and distinguish contamination from delamination, staining, abrasion, or exhausted water behavior before prescribing removal.

Bottom Line

Car wash equipment removes and transports contamination; paint protection intentionally leaves a selected sacrificial, bonded, or adhered layer on a properly prepared finish.

Sequence the work accordingly: clean, inspect, prepare, apply, cure, and maintain. Evaluate protection by its specific mechanism and condition, not by assuming that gloss, hardness language, or water beading proves invulnerability.
