Why OBD-II Diagnostics Matter

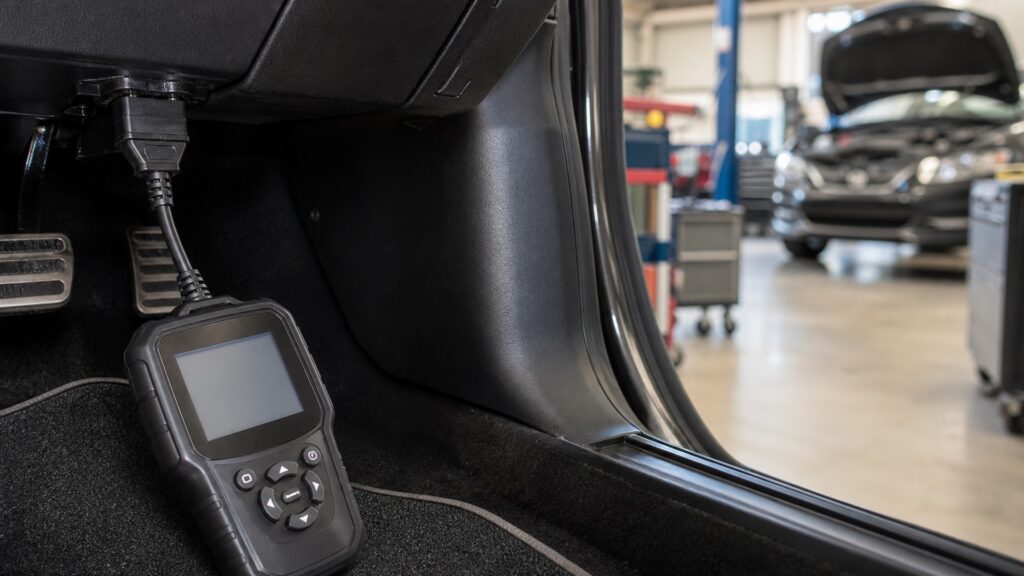

OBD-II diagnostics matter because the vehicle continuously checks emissions-related circuits and system performance, stores standardized evidence when a monitored condition fails, and alerts the driver through the malfunction indicator lamp. A scan tool can retrieve codes, snapshots, readiness status, and live parameters without disassembling the vehicle.
That evidence is a starting point, not a parts order. A code describes the condition detected by a monitor and may reflect wiring, leaks, mechanical faults, biased sensors, operating conditions, or the named component. Clearing memory erases useful context and resets readiness. Effective diagnosis preserves data, understands monitor criteria, tests the suspected cause, repairs it, and confirms both vehicle behavior and monitor completion.
What You'll Learn
Follow the Monitor from Self-Test to Verified Repair
OBD-II becomes useful when code retrieval is joined to operating context, system tests, causal proof, and post-repair readiness rather than code-description guessing.
- How a monitor decides to run
- What pending and confirmed codes mean
- Why freeze-frame preserves context
- How live data supports a hypothesis
- What clearing codes destroys
- Why readiness closes the regulatory loop
Tip: Before clearing anything, save every module's codes, status, freeze-frame, readiness, and relevant live data; the first snapshot is often the least contaminated evidence in the repair.
Definitions
Key Concepts That Define OBD-II Diagnostics
These terms identify the warning, stored evidence, and self-test state that a scan tool exposes.
Diagnostic Trouble Code
A standardized or manufacturer-specific identifier for a monitored fault condition and system area.
- Does not name the root cause
- Status and history matter
- Definitions follow formal formats
Freeze-Frame
A stored snapshot of selected operating data captured when qualifying fault logic sets a code.
- Can reveal load and temperature
- Availability varies
- Later faults may change stored context
Readiness Monitor
A status indicating whether a particular OBD self-test has completed since memory was cleared or power lost.
- Needed for many inspections
- Not-ready is not the same as failed
- Completion conditions vary
Live Data
Current parameter values reported by modules while the vehicle operates.
- Shows trends and relationships
- Update rate and scaling matter
- Plausible values can still be biased
Mode 6
Access to certain on-board monitor test results and limits before or beyond a simple code description.
- Support and naming vary
- Can expose marginal performance
- Interpretation needs correct test identifiers
Tip: Generic OBD-II standardizes an emissions-focused minimum; manufacturer-enhanced systems may provide more modules, data, tests, and procedures.
Monitor Logic
How the Vehicle Decides When and What to Test
Each monitor has enable criteria such as temperature, speed, load, fuel level, time, and absence of blocking faults. It compares sensor or system behavior with calibrated thresholds only when operating conditions make the test meaningful.
- Identify the monitor's enable conditions
- Check for blocking codes
- Confirm operating temperature
- Distinguish continuous from noncontinuous tests
A monitor that has not run provides no pass-or-fail conclusion about its system.
Fault Maturation
How Pending Conditions Become Confirmed Codes and Warnings
Some failures set immediately; others must occur on repeated trips. OBD can store pending, confirmed, permanent, or history-related status while deciding whether to command the lamp and whether later passing trips justify turning it off.
- Record exact status for each code
- Note whether the lamp is commanded
- Separate current from stored evidence
- Do not assume absence means never failed
Code status is a timeline, not a flat list of broken components.
Context Capture
Why Freeze-Frame and Live Data Turn a Code into a Testable Hypothesis
Freeze-frame shows selected conditions near fault recognition; live data lets the technician reproduce load, compare sensors, command outputs where supported, and observe whether values agree with physical measurements.
- Compare scan values with independent tests
- Graph related parameters together
- Check units and update rate
- Reproduce safely under similar conditions
Data becomes diagnostic only when it predicts a physical observation that can be tested.
Causal Diagnosis
How Circuits, Leaks, Mechanics, and Shared Inputs Produce the Same Code
A lean code can result from unmetered air, fuel delivery, exhaust leaks, sensor bias, or engine condition; an oxygen-sensor code can involve wiring or mixture. Service tests narrow causes in a deliberate order.
- Read the exact code-setting criteria
- Inspect shared power and grounds
- Test the system before the component
- Repair root causes before secondary codes
The code reports where the monitor saw the consequence, which may be downstream from the initiating fault.
Verification and Readiness
Why a Cleared Lamp Is Not a Completed Repair
Clearing codes removes evidence, turns the lamp off, and resets many monitors. After repair, the vehicle must operate through appropriate conditions so monitors rerun, readiness changes, and the original symptom or data abnormality remains absent.
- Clear only after preserving evidence
- Follow safe drive-cycle guidance
- Confirm monitor completion
- Recheck codes and live behavior
A dark warning lamp immediately after clearing proves only that memory was cleared.
Quick Reality Check
Standardized Evidence with a Deliberately Limited Diagnosis
OBD-II exposes how emissions monitoring interpreted vehicle behavior while leaving root-cause proof to disciplined testing.
What OBD-II Adds
Standardized connector access, code formats, readiness, snapshots, and data help independent technicians and owners begin with repeatable electronic evidence.
Monitor status can identify intermittent conditions, show whether self-tests have rerun, and prevent unnecessary parts replacement when paired with physical tests.
What It Does Not Know
OBD-II does not inspect every mechanical failure, body or chassis system, software interaction, intermittent connection, or safety concern, and generic tools expose only part of many vehicles.
A code, no-code state, cleared lamp, or complete readiness set cannot independently prove the vehicle is fully healthy or identify legal inspection outcomes everywhere.
Common Myths
Misconceptions About OBD-II Diagnostics
OBD myths treat a standardized code as a diagnosis, or memory clearing as successful repair.
The code tells you which part to replace
A trouble code identifies the monitored condition and operating evidence, not a guaranteed component. Wiring, leaks, voltage, mechanical faults, contamination, calibration, and shared inputs can all produce the same description.
No check-engine light means no diagnostic problem exists
Faults may be pending, stored without lamp command, outside regulated OBD coverage, intermittent, or unable to meet monitor criteria. Scan all relevant modules and evaluate the actual symptom rather than relying on one lamp.
Clearing codes fixes the problem if the light stays off
Clearing erases context and resets readiness; the monitor may simply not have rerun. A repair is supported only after the cause is corrected and appropriate operation confirms the test completes without recurrence.
Every inexpensive scanner shows the same information
Generic tools should access standardized emissions data, but update rate, protocol support, manufacturer codes, module coverage, bidirectional controls, Mode 6 labels, graphing, and service functions vary significantly among different tools.
Tip: Preserve status and context, then prove cause and rerun the relevant monitor before declaring success.
FAQ
Frequently Asked Questions About OBD-II Diagnostics
These answers address flashing lamps, safe code reading, readiness, battery disconnection, and using live data without turning it into another parts list.
What does a flashing check-engine light mean?
It commonly signals a severe misfire condition capable of damaging the catalytic converter. Reduce load, follow the vehicle manual, and obtain prompt service rather than continuing normal driving until a convenient appointment.
Is it safe to read OBD-II codes myself?
Reading with a compatible tool is generally noninvasive, but do not operate or watch it while driving, force connectors, change unsupported settings, clear evidence prematurely, or run actuator tests without understanding the hazards.
Why are readiness monitors incomplete after repair?
Clearing memory, battery loss, or recent repair resets self-test status. Each noncontinuous monitor needs particular operating conditions and no blocking fault; incomplete means the test has not yet reached a valid conclusion.
Can disconnecting the battery turn off the light?
It may erase volatile memory and reset readiness on some vehicles without correcting the fault. It can also affect learned settings or create other needs, so preserve data and follow vehicle-specific procedures first.
How should live data be used?
Form a hypothesis, choose related parameters, verify units, compare with independent physical measurements, and observe trends under controlled conditions. A plausible-looking number is not proof that its sensor or calculation is accurate.
Bottom Line
OBD-II diagnostics matter because standardized self-tests, codes, snapshots, readiness, and live data preserve evidence about emissions-related conditions that might otherwise remain hidden or intermittent.
Use that evidence in sequence: save it, understand when the monitor ran, test the physical cause, repair the system, and verify that the relevant monitor completes. Code reading is the opening of diagnosis, not its conclusion.
Next Steps
Connect Diagnostic Data to the Physical Vehicle
Use the electronics overview and engine-component guide to trace monitored signals back through networks, sensors, fuel, air, ignition, lubrication, cooling, and mechanical condition.
Trace how power, sensors, networks, modules, software, and outputs create the information OBD-II reports.
Relate mixture, misfire, timing, compression, lubrication, and cooling evidence to the physical engine systems behind many codes.
See how electronic brake controls differ from emissions-focused OBD-II coverage and still depend on hydraulic and friction hardware.
Quick Summary
OBD-II Diagnostics Explained
- Monitors run only under valid conditions.
- Code status records a timeline.
- Context makes data testable.
- Consequences can appear downstream from causes.
- Readiness distinguishes clearing from verification.
