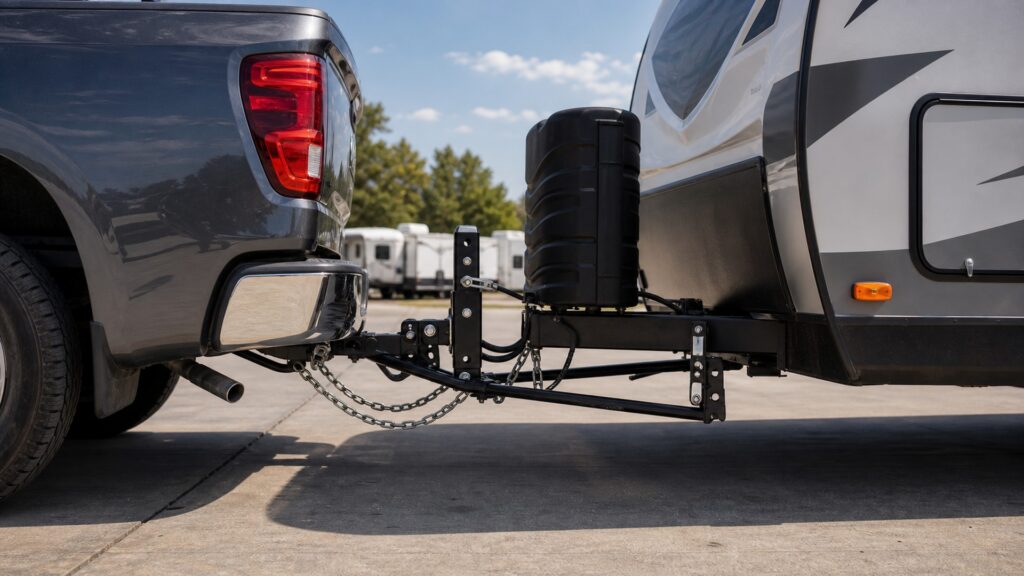

A conventional trailer presses down behind the tow vehicle's rear axle. That lever action adds rear-axle load while removing some load from the front axle, changing steering response, headlamp aim, suspension travel, and available payload. A weight distribution hitch uses spring bars to apply opposing moments through the receiver and trailer frame.
The system does not erase tongue weight or create capacity. It redistributes part of the coupled load among tow-vehicle and trailer axles according to geometry and adjustment. Too little tension leaves the front light; too much can overload the front, reduce rear traction, stress hardware, and hinder articulation. Setup begins with verified vehicle, receiver, hitch, trailer-frame, and bar ratings, then follows manufacturer measurements and loaded scale confirmation.
The goal is the tow-vehicle maker's specified front-axle load or height restoration while every axle, tire, receiver, and trailer component remains within rating.
Tip: Use loaded scale readings whenever possible. Fender height is a convenient setup reference, but cargo, suspension friction, air springs, slope, and measurement technique can hide the actual axle-load transfer.
These terms explain the lever system and prevent load redistribution from being mistaken for added payload.
A conventional-coupling system using spring bars to apply moments between tow vehicle and trailer frame.
A flexing steel member loaded between the hitch head and trailer-frame bracket to create leverage.
The amount of front-axle load returned after tongue weight initially unloads the tow vehicle's front axle.
The tilt setting that changes spring-bar preload and available adjustment geometry at the coupling.
The vehicle-mounted hitch limit stated separately for weight-carrying and weight-distributing operation where applicable.
The angular movement required between tow vehicle and trailer during turns, grades, dips, and uneven surfaces.
Tip: Adjustment targets come from the tow vehicle and hitch makers; a generic perfectly level stance is not a universal specification.
Downward coupling force aft of the rear axle pitches the body: rear suspension compresses, front load decreases, and the trailer's tongue remains supported. The magnitude depends on tongue load, hitch overhang, wheelbase, cargo, and suspension geometry.
Rear squat is a visible symptom of leverage, not a complete measurement of it.
When engaged, the bars bend and react against the trailer frame, applying moments that return part of the load toward the tow vehicle's front axle and the trailer axles. Bar stiffness, head angle, bracket position, and chain or latch setting determine transfer.
The bars redistribute force because they are preloaded springs, not because they hold the tongue up independently.
Tow-vehicle makers may specify a fraction of front height or axle load to restore. Over-distribution can load the front axle excessively, unload the rear tires, stiffen the combination, or stress receiver and trailer-frame attachments.
A level-looking vehicle can still have wrong axle loads.
Rear helper springs or air bags can restore ride height and suspension travel, but they generally do not apply the same hitch-to-trailer moment that returns load to the front axle. Used together, pressures and measurements must follow compatible instructions.
Cosmetic leveling can conceal a front axle that remains unloaded.
Spring bars, chains, brackets, friction devices, integrated cams, propane trays, frames, and ground surfaces can contact or bind. Some separate sway controls must be removed for backing or severe articulation; product instructions govern.
A correctly loaded hitch still fails if its hardware cannot articulate through the route.
Spring-bar leverage can restore an approved share of front-axle load, but every original vehicle, axle, tire, receiver, trailer, and component limit remains.
A conventional trailer's measured tongue load causes front-axle unloading that the tow-vehicle maker permits or requires a compatible weight-distribution system to address.
The receiver and trailer frame are approved, bar rating matches loaded tongue weight, manufacturer adjustment targets are followed, scales confirm axle loads, and hardware articulates safely through the route.
It cannot increase payload, GVWR, GAWR, GCWR, towing capacity, tire or wheel capacity, receiver attachment strength, trailer GVWR, brake capability, or a component's marked rating.
It cannot cure too little tongue weight, rearward or shifting cargo, excessive speed, weak trailer brakes, worn tires, incompatible surge-brake geometry, unapproved frames, or sway caused by a fundamentally unstable load.
Weight-distribution myths mistake a lever adjustment for extra carrying capacity or a universal cure for squat and sway.
The coupling still applies load to the combination. Spring bars redistribute part of its axle effect, while the hitch hardware and remaining vertical load still consume payload. Scale readings reveal where the load actually moved.
Vehicle-maker targets vary; complete restoration or over-transfer can be inappropriate. Follow the approved procedure and confirm front, rear, and trailer axle weights rather than pursuing an automatic equal-height or equal-load rule.
Air springs can restore rear ride height and travel but generally do not create the same moment through the trailer frame. They may hide front-axle unloading, so use the approved equipment and verify actual axle loads.
Some systems integrate sway resistance, but stable towing still requires correct tongue load, cargo placement, speed, tires, alignment, hitch geometry, and driver response. Weight redistribution alone cannot repair an unstable trailer mass distribution.
Tip: Evaluate actual front, rear, and trailer axle changes and follow the specific restoration target before deciding the hitch has improved the combination.
These answers cover bar sizing, scale tickets, surge brakes, air springs, sway-control integration, and how often a setup must be rechecked after cargo changes.
Use the hitch maker's range for the actual loaded tongue weight, including cargo carried behind the tow vehicle's rear axle when instructions require. Bars too light may lack control; bars too stiff can over-transfer and ride harshly.
Record tow vehicle alone, coupled without spring-bar tension, and coupled with final distribution, capturing front axle, rear axle, trailer axle group, and totals. Keep passengers, cargo, fuel, and trailer load consistent between passes.
Only when the surge coupler, hitch, and weight-distribution system are explicitly compatible. Some friction or geometry can interfere with coupler movement, so follow all manufacturers rather than assuming a conventional electric-brake setup transfers directly.
Follow the tow-vehicle, air-spring, and hitch instructions because sequence directly affects measurements. Some procedures establish weight distribution before adding helper-spring pressure; the final setup still needs axle-load and rating verification.
Recheck after meaningful changes to trailer loading, tongue weight, tow-vehicle cargo, suspension height, hitch components, tires, or ride attitude. Inspect brackets and fasteners after initial use and at the intervals specified by the manufacturer.
Weight distribution hitches matter because spring-bar leverage can restore an approved portion of front-axle load that conventional tongue weight removes while sharing load differently across the coupled axles.
They do not create capacity: select bars from actual loaded tongue weight, follow vehicle and hitch targets, confirm every axle on scales, and ensure the tensioned hardware remains compatible and free through turns, grades, and braking.
